Split · Multi-Split · Central
New AC Installation in Abu Dhabi
Correct sizing, certified refrigerant handling, and a fitting charge confirmed before we start — for new construction, replacement units, and multi-room villa systems across Abu Dhabi.
What's Actually Involved in a Proper Installation
Every step below matters — most installation failures we're later called out to fix trace back to one of these being rushed or skipped the first time around.
Site check and unit sizing confirmed
Room size, window/wall exposure, ceiling height, and insulation are checked against the unit's rated capacity before anything is mounted — the single biggest factor in whether an installation performs well for years or underwhelms from day one.
Indoor unit mounted and wall bracket fitted
Positioned for even airflow across the room and away from direct sun or heat sources that would make the thermostat read inaccurately.
Refrigerant line set routed and connected
Copper piping run between indoor and outdoor units, insulated against condensation, and connected with flared fittings rather than any shortcut that risks a slow leak developing within the first year.

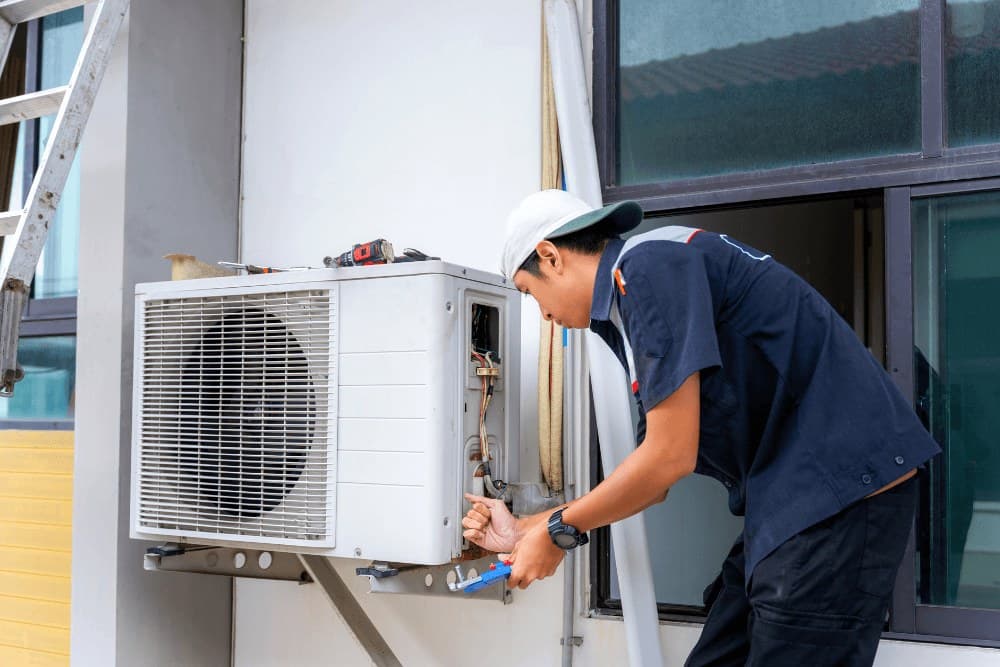

Outdoor unit mounted with proper clearance
Wall bracket or ground pad positioned with the airflow clearance the compressor needs — a unit installed too close to a wall or another condenser runs hotter and less efficiently for its whole service life.
Vacuum test and pressure check
The line set is vacuumed to remove air and moisture before any refrigerant is introduced — skipping this step is the single most common cause of an installation that fails within months, not years.
Electrical connection and dedicated circuit check
Wiring is checked against the unit's rated load, with a dedicated breaker confirmed rather than sharing a circuit already carrying other loads.
Initial refrigerant charge and commissioning
Charged to the exact weight specified for your line length, then run and tested against target pressures and delivery temperature before we call the job done.
Condensate drain routed and tested
Drain line sloped correctly and tested with water before we leave — a drain that backs up is one of the most common post-installation callbacks, and it's fully preventable at this stage.
What Size AC Do You Actually Need?
A starting point by room size — ceiling height, sun exposure, and insulation shift the right answer, which is why we confirm sizing on-site rather than quoting from a room measurement alone.
| Room | Typical tonnage | Note |
|---|---|---|
| Bedroom, 12–15 m² | 1.0 ton | Standard bedroom in an apartment or villa |
| Bedroom, 15–20 m² | 1.5 ton | Larger bedroom or a bedroom with heavy sun exposure |
| Living room / majlis, 20–28 m² | 2.0 ton | Higher ceilings or open-plan layouts push toward the upper end |
| Living room / majlis, 28–35 m² | 2.5 ton | Larger open-plan spaces, especially with a kitchen open to the room |
| Large open-plan area, 35 m²+ | 3.0 ton or multi-split | Often better served by two smaller units than one oversized one — see below |
Bedroom, 12–15 m²
1.0 ton
Standard bedroom in an apartment or villa
Bedroom, 15–20 m²
1.5 ton
Larger bedroom or a bedroom with heavy sun exposure
Living room / majlis, 20–28 m²
2.0 ton
Higher ceilings or open-plan layouts push toward the upper end
Living room / majlis, 28–35 m²
2.5 ton
Larger open-plan spaces, especially with a kitchen open to the room
Large open-plan area, 35 m²+
3.0 ton or multi-split
Often better served by two smaller units than one oversized one — see below
Which Kind of Installation Do You Need?
First-time / new construction
No existing unit to remove — the job is mostly about correct line routing and mounting position, since there's no old installation's mistakes to work around or correct.
Replacing an old unit
The old unit is uninstalled and safely disposed of or handed back if trade-in applies, then the new unit is installed fresh rather than reusing old line sets or brackets, which is where corners often get cut on budget installations.
Multi-split (one outdoor, several indoor units)
One outdoor condenser serves 2–5 indoor units across different rooms — genuinely more efficient than several single-split systems for a villa with several rooms needing AC, but the outdoor unit and line routing need more careful planning upfront.
Ducted / central system
The air handler, ductwork, and register placement are planned as a full system rather than room by room — a bigger job with more that can go wrong if planned poorly, which is exactly why sizing and duct design matter more here than on a single split unit.
New AC Installation Cost in Abu Dhabi
Fitting charges below cover labour and installation materials — the AC unit itself is priced separately unless you've agreed a bundled quote.
1.0 – 1.5 ton split unit
AED 800 – 1,800
Fitting charges only, unit purchased separately unless bundled
2.0 – 2.5 ton split unit
AED 1,200 – 2,200
Longer line runs or higher floors add to labour
Multi-split (2–3 indoor units)
AED 2,500 – 5,500
Per system, depends on total capacity and line routing complexity
Ducted / central system
AED 6,000 – 15,000+
Highly dependent on ductwork extent and access — quoted after a site visit
Higher floors, longer line runs, and difficult access (no lift, tight balcony access) add to labour time — reflected honestly in the quote, not hidden until after the job's underway.
Brands We Install
Bought your own unit already? We install customer-supplied units too — call to confirm your specific brand and model.
Why Installation Quality Matters More Than It Looks Like It Should
An AC that's mounted and running looks the same whether it was installed correctly or not — the difference shows up months later, as a slow refrigerant leak from a rushed flare connection, a drain that backs up in the first heavy-use week, or a unit that never quite reaches its rated efficiency because the line set wasn't properly vacuumed before charging.
R32 systems add a specific reason to use certified installation rather than the cheapest quote available — the refrigerant is mildly flammable, which means correct handling procedures aren't optional, and most manufacturer warranties require certified installation specifically for this reason.
The honest way to think about it: a new AC installation is one of the few jobs where a shortcut is invisible at handover and expensive within a year — worth paying for it to be done properly once rather than paying twice.
Frequently Asked Questions
How much does new AC installation cost in Abu Dhabi?
What are typical new AC fitting charges versus buying a unit already installed?
How do I know what size (tonnage) AC I need?
What happens if my new AC is the wrong size for the room?
How long does AC installation take?
Do you install split, multi-split, and central AC systems?
Does self-installing an AC void the manufacturer's warranty?
Which AC brands do you install?
I'm moving — do I need a new installation, or can my existing AC be reinstalled?
Should I book AC maintenance right after installation?
Do you handle the electrical work for a new AC circuit, or just the AC itself?
Is there a warranty on the installation itself?
Ready When You Are
Get a fitting charge quote for your new AC.
Fixed price confirmed before any work starts. Licensed technicians, 90-day workmanship warranty.
